Protecting Your Home from Storm Water Damage

A heavy rainstorm has finally stopped. Or maybe a long winter has finally ended, and the deep snows have begun to melt.

While good weather may seem like a relief, the potential for water damage may just be beginning. Storm water runoff can quickly overwhelm natural and manmade systems, leading to flooding and property damage.

The steps you take today to prepare your home and yard for proper drainage can help avoid time-consuming and costly repairs when the bad weather does blow through.

In a natural environment, storm water runoff is absorbed by soil, evaporates into the atmosphere or flows into bodies of water, such as streams, lakes or rivers. Homeowners may need to recreate the natural environment on their property to address storm water runoff. This includes planting trees and other vegetation, building rain gardens and installing rain barrels or cisterns to collect roof water.

How Can You Protect Your Home from Storm Water?

“The key to developing a yard drainage plan is to understand the specific characteristics of your property and implement the system that works best for you,” says Mike Koppang, a Travelers Risk Control professional. During a storm, you can go outside and observe how the water flows. Take note of the different grades and slopes and whether they divert the flowing water away from your home. Look for any low spots that collect or pool water and for any steep slopes that have indications of surface erosion.

Consider the steps needed to protect your property from water runoff. Rain that falls on roofs, driveways, patios, roads and other impervious areas moves across the ground surface at greater speeds. The property adjacent to these areas could be more susceptible to damage. Frozen soil can also increase risk of damage by preventing water from being absorbed by the soil. Replacing impervious areas with pervious surfaces, such as permeable paving stones or pavers, can also help.

Other questions you might consider:

• Is storm water that falls on impervious surfaces diverted away from your house? This is the work of things like roof gutter downspouts, driveways, walkways and patios. Runoff from these surfaces should be directed to an area that has the ability to absorb or slow the surface flow, such as landscaped areas, and away from your house.
• Does your house have a stream, pond or lake close by? Consider the flood potential and how it may impact your property. You can research local flood maps that will detail flood water levels for various storm events and their flood potential.
• Does your driveway or other impervious surface have a negative pitch back toward the house? Consider installing trench drains or area drains to help prevent pooling and divert water away from the house.
• Do you have retaining walls on your property? If so, it is important that the walls have a drainage system in place to alleviate pressure behind the wall. Periodically clean weep holes to ensure they are not clogged. Surface water should not be allowed to cascade over the top of the wall and instead should be diverted to the end of the wall or around it.
• Is a portion of your house below ground level, such as a basement? Make sure any sewer and water lines, or any other pipes or lines that penetrate subsurface walls, and foundation cracks are properly sealed. Basements that are prone to water intrusion should have a water collection system in place, such as a sump pump system. This system should be maintained with a battery backup for continued operation in the event of a power failure. Consider elevating mechanical systems or installing curbs around areas that need protecting but cannot be elevated, such as finished areas and storage areas. Exterior basement window wells should have covers and the ground surface of the well should be below the well rim.
• Do you have a sewer or septic system and property with known high water tables? Have the system checked by a professional. If the groundwater rises too high, it can affect the efficiency and operation of the system. In some cases, this may lead to sewer back up or waste leaching above the ground or back into the house.

Surface storm water is not the only consideration for protecting your home. It is also important to assess the functionality of your whole home envelope system. Make sure that your house exterior is maintained, including roofing, flashings, weather barriers, windows, doors and sealants.

While you cannot prevent against all damage from storm water runoff during large acts of nature, these steps can help protect your home when storms do hit.

Article Source

Safety on the Job: Protecting Lives on the Job

In the bustling world of construction, safety isn’t just a priority; it’s a fundamental necessity. The construction industry, while essential, is inherently risky, with numerous potential hazards that can jeopardize the well-being of workers and even bystanders. This comprehensive article delves into the critical topic of safety in construction, exploring the measures, protocols, and best practices that ensure workers’ safety and the integrity of construction projects.

Alarming Statistics

Understanding the Scope of the Issue

Before delving into safety measures, it’s essential to grasp the gravity of the situation. Construction is one of the most dangerous industries, accounting for a significant number of workplace injuries and fatalities. In the United States alone, the Bureau of Labor Statistics reported that there were 1,102 construction fatalities in 2019. This alarming statistic underscores the urgent need for robust safety measures within the industry.

The Toll on Workers

The construction industry sees thousands of injuries and fatalities annually. From falls and machinery accidents to exposure to hazardous materials, the risks are abundant. For construction workers, these risks are not just statistics; they are the daily realities they face while on the job. Beyond the physical toll, workplace accidents can also lead to emotional and financial burdens on workers and their families.

Legal Framework for Safety

OSHA Regulations

The Occupational Safety and Health Administration (OSHA) plays a pivotal role in regulating and enforcing safety standards in the construction sector. OSHA has developed a comprehensive set of regulations specifically tailored to the construction industry. These regulations cover everything from fall protection and scaffolding standards to hazard communication and electrical safety.

Compliance and Inspections

Construction companies must adhere to OSHA regulations to ensure the safety of their workers. Regular compliance inspections are conducted to evaluate whether construction sites meet these standards. These inspections not only help identify potential hazards but also hold employers accountable for maintaining safe working conditions.

Key Safety Measures

Training and Education

Proper training is paramount to preventing accidents in the construction industry. Workers need to understand the potential risks and how to mitigate them. Training programs cover a wide range of topics, including the safe operation of machinery, the proper use of personal protective equipment (PPE), and hazard recognition. Employers must ensure that their workers are adequately trained and that they receive ongoing education to stay updated on best practices.

Personal Protective Equipment (PPE)

Personal Protective Equipment (PPE) is a frontline defense against accidents in construction. Workers must be equipped with the right gear for their specific tasks. This includes helmets, gloves, safety glasses, ear protection, and high-visibility clothing. The proper use of PPE can significantly reduce the risk of injuries.

Fall Protection

Falls are a leading cause of construction fatalities. Implementing fall protection measures is crucial. This includes the use of guardrails, safety nets, and fall arrest systems. Additionally, workers must be trained on how to work at heights safely and use equipment like ladders and scaffolds properly.

Machinery Safety

Operating heavy machinery requires skill and caution. Regular maintenance and operator training are vital to preventing accidents involving machinery. Employers should also implement safety protocols such as equipment inspections before each use.

Safety Culture

Fostering a Safety-Conscious Environment

Creating a culture of safety is essential in the construction industry. It begins at the top, with management setting the example. When leadership prioritizes safety, it sends a clear message to all employees that safety is not negotiable. Workers should feel empowered to raise safety concerns without fear of repercussions.

Reporting and Accountability

Workers should feel encouraged to report safety concerns promptly. Employers should establish clear procedures for reporting hazards, near misses, and accidents. This information is invaluable for identifying and addressing potential issues before they lead to injuries. Accountability measures, such as incident investigations and corrective actions, should also be in place to ensure that safety is taken seriously.

Technological Advancements

Technology has played a significant role in improving safety in the construction industry. Innovative solutions like drones and wearable sensors have revolutionized safety practices. Drones can be used for site inspections and monitoring, providing real-time data on potential hazards. Wearable sensors can track workers’ vital signs and movements, alerting supervisors to potential health or safety issues.

Additional Insights

To delve even deeper into the topic of safety in construction, it’s essential to consider various aspects of this critical issue. Construction safety is a multifaceted subject that encompasses not only physical safety measures but also mental and emotional well-being within the industry.

Mental Health and Well-being

Construction workers often face high-stress levels due to tight deadlines, job insecurity, and the physically demanding nature of their work. Addressing mental health is an integral part of overall safety in construction. Employers can provide access to counseling services and resources to help workers cope with stress and anxiety.

Environmental Safety

In addition to protecting the workers themselves, construction companies must also prioritize environmental safety. Proper waste disposal, pollution control, and adherence to environmental regulations are essential to minimize the impact of construction projects on the environment.

Community Safety

Construction projects can have far-reaching effects on the surrounding communities. Dust, noise, and disruption are common concerns. Implementing measures to minimize these impacts, communicating with the community, and being responsive to concerns can help maintain positive relationships with neighbors.

Safety Training and Certification

Continuous safety training and certification programs are essential for both seasoned construction professionals and newcomers to the industry. Regularly updated training

In the world of construction, safety isn’t a luxury; it’s a necessity. By understanding the alarming statistics, complying with legal regulations, implementing key safety measures, nurturing a safety culture, and embracing technological advancements, the construction industry can significantly reduce the risks associated with the job. Ensuring the well-being of workers is not only ethically sound but also essential for the success and sustainability of construction projects.

Article Source

Flat Roof vs. Pitched Roof

What Is A Pitched Roof?

A pitched roof is probably the type of roof you think of when you’re thinking of a typical house. Any roof that has a peak and slopes downward is considered a pitched roof. They are the most common roofing style.

Advantages

• Pitched roofs tend to have a longer lifespan compared to flat roof styles. The average lifespan of a pitched roof is about 20-50 years. This can vary according to the type of roofing materials used in constructing your roof and other climate factors.
• Another pro to a pitched roof is that they usually don’t require much maintenance. Their sloped design helps to lead precipitation off your roof and decrease the possibility of water damage.

Disadvantages

• The main disadvantage to a pitched roof is the installation cost, which is higher than that of a flat roof.

• Considered a disadvantage for those with an eye for the modern design, pitched roofs can contradict a modern façade.

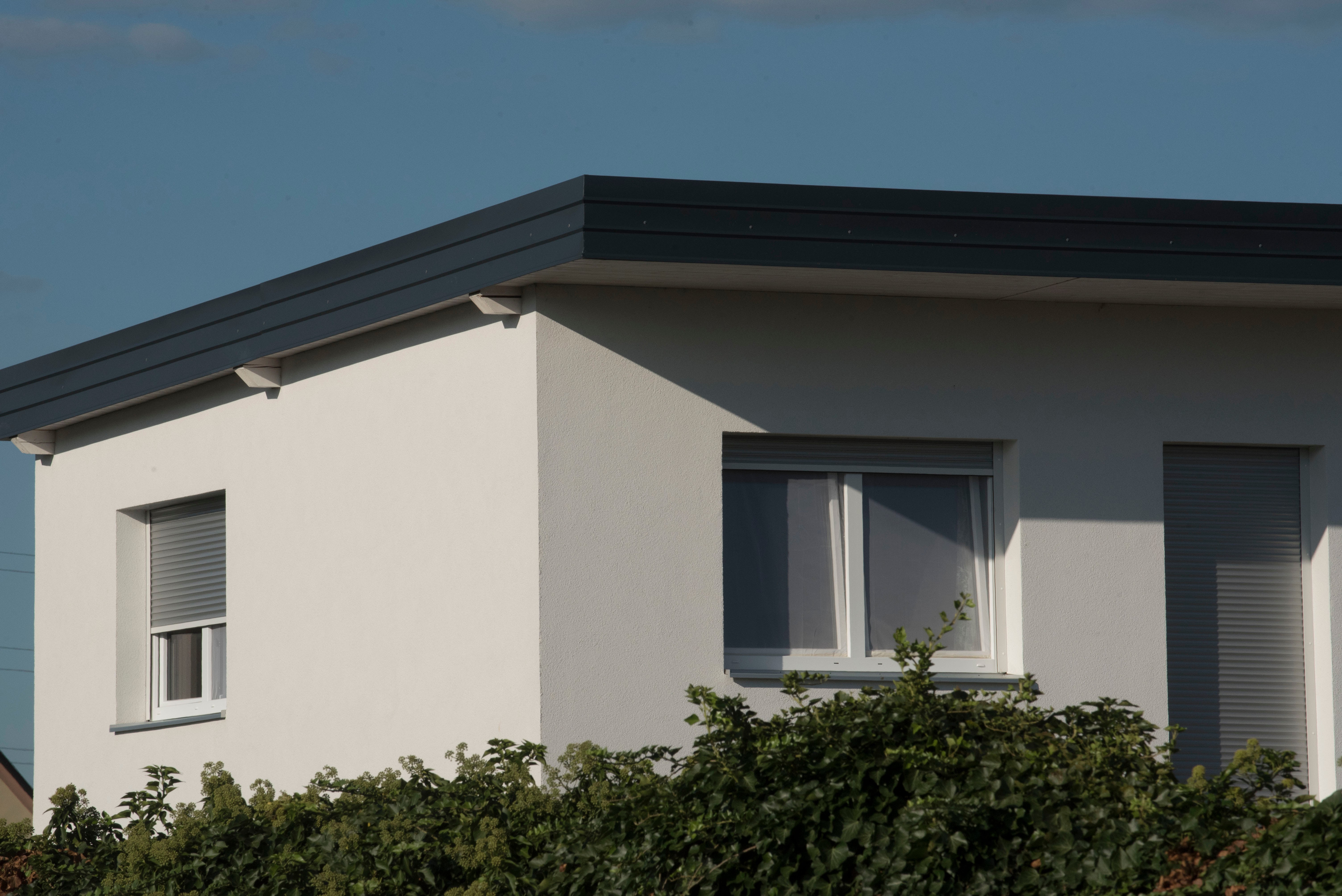

What Is a Flat Roof?

Flat roofs are exactly what they sound like – a style of roofing that is flat as opposed to having a peak. This is a more modern trend of roofing typically used in commercial buildings, but is slowly becoming more common in the housing market.

Advantages

• A flat roof style has a unique aesthetic of a modern structure.
• Low up-front material costs. Compared to a pitched roof installation, flat roofs typically are less expensive mostly because flat roofing materials often come in large roles versus pitched roofing materials in small sheets. The roof decking system also requires less lumber.

• Installation costs are less expensive on a flat roofing system as are repair costs.
• Flat roofs are safer to repair and maintain due to the lack of slope and less risk of slipping and falling.

Disadvantages

• Opposite of pitched roofs, flat roofs do tend to require more maintenance and have a shorter lifespan comparatively. Flat roofs have an average lifespan of about 10 years.
• Flat roofs can be susceptible to water damage due pooling of water after rainfall and lingering precipitation.
• Structurally, larger flat roofs made need additional support beams in the interior of the home to support to large expanse.
• The energy efficiency of flat roofs can be an issue because unlike in pitched roofs, flat roofs do not allow for attic insulation.

Flat roofs remain the popular choice for commercial buildings due to the lower cost and their ability to support heavy equipment such as air conditioning units. Flat roofs also provide the option for rooftop bars, gardens and other amenities growing in popularity in commercial or multi-family buildings.

Overall, both styles of roofs have been proven effective and fits everyone’s needs differently. Whatever style you choose for your home making sure your roof is constructed with high quality materials and installed by expert roofing contractor is key to a long and healthy roofing system.

Article Source

What Is Structural Assessment?

Structural assessment is an important field of study for civil engineers, as the objective is to inspect existing structures and determine their safety and stability. Civil engineers must have the right technical knowledge and experience to assess the structural integrity of buildings, bridges, dams, tunnels and other structures.

A structural assessment is a thorough inspection of an existing structure to determine its safety and stability. The assessment is usually conducted by a civil engineer, who will have the necessary technical knowledge and experience to assess the structural integrity of the structure. The engineer will inspect the structure for any signs of damage or structural instability, and will also assess the condition of the foundation, support systems and any other structural components.

Why we need Structural Assessments;

Assessment of the structures are done for different reasons that may be for mandatory or any other reasons. The main focus of structural assessments are as follows.

• When it required to modify the existing structure where there are not structural drawings of the structure.
• When it is required to assess the condition of the old structure
• When existing structure, may be newly build structure, cases excessive settlements.
• Cracking of new structure; brick walls cracks or structural cracks in the beams, columns etc.
• When it found that part of the structure is not having the adequate strength after the construction; this may known by testing of the concrete cubes casted at when concrete is poured.

Main Stages of Structural Assessment

It is required to follow the basic procedure when structural assessment is done. It is more common for all the types of structural assessments.

• Visual Inspection
• Taking necessary measurements
• Testing of structure
• Analyzing and designing of the structure, if required
• Providing recommendations

Let’s discuss each type of stages in detail.

Visual Inspection

Initial stage of a structural assessment is the visual inspection. During the visual inspection all the defect that can be visually identified will be recorded for the further actions.

If the information gathered during the inspection are adequate to come to an conclusion, necessary recommendations will be provided for rectification. When the further assessment is required, client will be notified on the same and will recommend proceeding with further assessment.

The procedure to be followed for further assessment will be decided after the visual inspection. Required measurements, testing plan, other information on the structure such a available drawings, etc. will be proceed as the next stage.

Taking Measurements

This is connected with the testing of the structure.

Necessary measurement of the structure such as dimensions, crack widths, crack patterns, locations of the cracks, etc. will be recorded in this stage. In addition, settlement of the structures, change in the crack width are also recorded.

The recorded information will be used for the structural analysis, testing and design purposes.

Testing of Structure

After conducting the visual inspection, the testing plan will be determined. The degree of damage and level of assessment required number of test and types of to be done will be determined. Mainly, there are two types of testes, namely.

• Nondestructive Testing: Which will be done without damaging the structure. Rebound hammer test, ultrasound Pulus velocity test, etc. It is the best way to find the properties of the structure. However, due to the lags of these test, carrying out nondestructive testing of not adequate.
• Destructive Testing: Destructive testing provides more accurate results; however, there are expensive and causes the damagers to the structures as we need to take the samples. Therefore, destructive testing are done together with the nondestructive testing. Combination of those tests provides more reasonable results in terms of accuracy and the cost.

Analysis and Design

This will be done based on the requirements of the structural assessment. It may not be required to do the structural analysis and design for all the structural assessments.

Available structural drawings and architectural drawings, actual site measurements, etc. will be used for the modeling of the structure. Material properties such as grade of concrete, strength of reinforcements, etc. will be used from the existing drawings. When they are not available or deviate from the test results, the material properties will be modified based on the actual conditions found from the tests.

Providing Recommendations

All the information gathered during the structural assessment will be used to come to a conclusion for providing the necessary recommendations.

Observations made during the site inspection, test results, analysis results, design outcome, site measurements, etc. will be studied in this process and based on those results, the recommendations will be provided.  Article Source

Failure Modes in Concrete Beams: Flexural and Shear Failure

Failure modes in reinforced concrete beams are classified into two major types: flexural failure and shear failure. The former occurs when the imposed load exceeds the flexural capacity of the materials of the beam, while the latter occurs due to deficiency in shear resistance between different materials of the beam.

These failure modes are further divided into different kinds of failure; the former is categorized into tension failure, compression failure, and balanced failure whereas shear failure is categorized into tension shear failure and compression shear failure. The nature and mechanism of these failure modes are different.

Some of them are favored in terms of design, but there are others that need to be avoided in order to prevent severe collapses of structures. For instance, the crushing of concrete and shear failure modes are undesired since they occur suddenly without any warning.

Flexural Failures

This failure mode occurs when the loads on the beam exceed its flexural capacity. The shear strength of the beam should be greater than its flexural strength otherwise the shear failure would occur before flexural failure. The flexural failure is divided into three types which are discussed below.

1. Flexural Tension Failure

Flexural tension failure initiates by yielding of steel reinforcement followed by crushing of concrete at compression side of the beam. It occurs when the beam is under-reinforced; the reinforcement ratio in the beam is low than balanced reinforced ratio as per ACI 318-14.

The signs of this type of failure are the development of cracks at the tension side of the beam which further extend to the compression side. These cracks are mostly vertical and located at the middle third of the beam. Great deflection is another sign of flexural tension failure.

In summary, the flexural tension failure happens gradually i.e. ductile failure and it is desired failure type in beam design process.

2. Flexural Compression Failure

The flexural compression failure begins by crushing of concrete at compression side followed by yielding of steel at tension side of the beam. It occurs when the beam is over-reinforced which means the beam reinforcement ratio is greater than balanced reinforcement ratio as per ACI 318-14.

This type of failure is sudden and does not provide warning i.e. brittle failure. That is why it is not desired from reinforced concrete design point of view.

This type of failure can be prevented by avoiding over-reinforced concrete beam design or increasing compression strength of concrete by introducing steel reinforcement at the compression side or increasing the geometry of the beam.

3. Balanced Failure

It is a type of failure in which concrete crushes and steel yields simultaneously. It occurs when the amount of steel in the beam is equal to balanced reinforcement ratio as per ACI 318-14.

Shear Failure Modes

Shear failure occurs when the beam has shear resistance lower than flexural strength and the shear force exceeds the shear capacity of different materials of the beam. A shear load is a force that tends to produce a sliding failure on a material along a plane that is parallel to the direction of the force.

This type of failure is sudden and provides no warning i.e. brittle failure. The effective span to depth ratio of the beams and its size are important parameters in determining the type of shear failure.

Shear failure is an undesired type of failure and commonly stirrups are placed in the beam to prevent the shear failure. The shear failure mechanism is characterized by shear sliding along a crack in beam without shear reinforcement and yielding of stirrups in a beam with shear reinforcement. It is classified into the following forms:

1. Diagonal Tension Failure

Diagonal tension failure begins with the development of vertical crack (flexural cracks) at the bottom of the beam due to flexural tensile stress. Then, as the load on the beam increases, this crack growth both in width and length and bends in a diagonal direction as it moves to the upper part of the beam toward the loading point. After that, the last stage of shear tension failure occurs which is a sudden failure of concrete in shear.

This mode of failure is common in beams with low or no web reinforcement. Diagonal tension failure occurs typically in beams with a shear-span to depth ratio (a/d) greater than 2, but could occur also for lower values of a/d.

2. Shear Compression Failure

Shear compression failure begins by initiation and development of cracks in the beam cross-section. Then, these cracks propagate and penetrate the compression zone of the beam, and the final stage of the failure occurs when the compressive strength of the concrete is exceeded.

The crushing of concrete takes place at the tip of the diagonal crack in the area around the point of load application.

Shear compression failure is mainly related to high amount of shear reinforcement. Finally, shear compression failure can occur in beams with span to depth ratio of less than four.

3. Splitting Shear (True Shear) Failure

When the shear span to depth ratio of a beam is less than one, splitting shear failure can be expected. Commonly, this type of beam is called deep beam in which loads are directly transferred to supports, and shear strength is much higher than in ordinary flexural beams.

Sometimes, failure in compression of the region adjacent the supports may occur instead of splitting shear failure.

4. Anchorage failure

Anchorage failure is the splitting of concrete along the longitudinal reinforcement (before compression failure can occur) due to small diagonal cracks. It occurs when the main reinforcement is not adequately anchored beyond the crack.

Article Source

Types Of Structural Failures And Common Causes

Structural failures can have catastrophic consequences, leading to loss of life, property damage, and economic implications. Understanding the causes, impacts, and prevention of failures is crucial for ensuring the safety and integrity of buildings and infrastructure. In this article, we will explore the common causes of structural failures, examine notable case studies, discuss the impact of such failures, and delve into the preventive measures that can be taken to mitigate these risks.

Structural failures occur when a component or system within a building or infrastructure collapses or fails to perform its intended function. These failures can be attributed to various factors, including design errors, construction defects, material failure, excessive loads, and natural disasters. Addressing structural failures is of paramount importance to protect public safety, maintain the integrity of structures, and prevent potential disasters.

Common Causes of Structural Failures

Design errors: Flaws in the design phase, such as inadequate calculations or improper structural analysis, can compromise the strength and stability of a structure.

Construction defects: Poor workmanship, improper installation of components, or the use of substandard materials during construction can weaken the structural integrity of a building.

Material failure: Failures can occur due to the failure of materials used in construction, including steel, concrete, or timber. Factors like corrosion, fatigue, or manufacturing defects can contribute to material failure.

Overloading or excessive loads: When structures are subjected to loads beyond their capacity, such as heavy machinery or excessive snow accumulation on roofs, it can lead to stress and failure.

Natural disasters: Events like earthquakes, hurricanes, floods, or strong winds can cause severe structural damage and lead to failures, especially if the structures are not designed or constructed to withstand such forces.

Settlement: Settlement occurs when a structure sinks or subsides into the ground unevenly. It can be caused by soil compression, consolidation, or the removal of underlying materials, such as mining activities. Settlement can result in structural damage and uneven floors.

Delamination: Delamination is a failure mode commonly seen in composite materials, such as laminated composites or concrete overlays. It involves the separation of layers within the material, reducing its strength and integrity.

Erosion and Scour: Erosion and scour can weaken the foundations of structures, particularly in water environments. It occurs when the soil or sediment around foundation elements is eroded or washed away by moving water, compromising support and stability.

Chemical Degradation: Chemical degradation, including chemical attacks discussed earlier, can weaken structural materials like concrete, steel, or coatings, reducing their ability to withstand loads and environmental factors.

Dynamic Loading: Dynamic loads, such as those from earthquakes, wind gusts, or machinery vibrations, can lead to structural failures if the design does not adequately account for these dynamic forces. Buildings, bridges, and other structures need to be designed to resist dynamic loads effectively.

Creep Rupture: Creep rupture is a failure mode in which materials subjected to high temperatures and sustained loads experience gradual deformation and eventually rupture over time. This is especially relevant in applications involving elevated temperatures, like boilers and pressure vessels.

Blast and Impact Loading: Explosions or impact events can cause localized or widespread structural damage. Designing structures to withstand blast or impact loading is crucial in high-risk areas, such as military facilities and critical infrastructure.

Inadequate Maintenance: A lack of proper maintenance can lead to structural deterioration and failure over time. Regular inspections, repairs, and maintenance are essential to prevent structural issues from developing or worsening.

Human Error: Human errors during construction, alterations, or maintenance can lead to structural failures. Oversight, miscommunication, and negligence can all contribute to structural problems.

Types of Structural Failures

Foundation Failure: Foundation failures can lead to settlement or differential settlement, where the structure sinks or tilts due to inadequate soil support, soil erosion, or poor foundation design. This type of failure can result in structural instability and damage.

Cracking: Cracks in concrete or masonry structures can develop for several reasons, including structural movement, thermal expansion and contraction, excessive loading, and chemical attacks. Cracking can compromise the integrity of the structure and allow the ingress of moisture and harmful agents.

Buckling: Buckling occurs when structural members, such as columns or beams, fail due to excessive axial loads or instability. It often manifests as a sudden, lateral deflection or kinking of the member. Buckling can be caused by insufficient bracing, slender members, or improper design.

Fatigue Failure: Fatigue failure happens when a structure or component experiences repeated or cyclic loading over time, leading to the gradual development of cracks and, eventually, failure. It is common in bridges, aircraft, and other structures subjected to dynamic loads.

Corrosion and Rusting: Corrosion of metal components, particularly in marine or corrosive environments, can weaken the structure over time. Rusting of steel reinforcement in concrete can lead to cracking and spalling of the concrete cover, compromising the structural integrity.

Overloading: Overloading occurs when a structure or component is subjected to loads greater than its design capacity. This can result in deformation, failure, or even collapse. Overloading can be caused by accidents, misjudgment, or changes in usage.

Vibration-Induced Failure: Excessive vibrations, whether from machinery, wind, or other sources, can lead to fatigue failure or resonance-induced failure. Vibrations can cause damage to structural elements and lead to reduced stability.

Shear Failure: Shear failure happens when structural members, such as beams or columns, fail due to a combination of shear forces and bending moments. It can result in the sudden tearing or shearing of the material.

Lateral-Torsional Buckling: Lateral-torsional buckling is a form of structural instability that affects beams and girders. It occurs when a beam twists and bends laterally under a combination of axial and bending loads, leading to a loss of stability.

Thermal Expansion and Contraction: Extreme temperature fluctuations can lead to thermal stresses in structures, causing cracking and deformation. Bridges, for example, may experience expansion joint failures due to repeated thermal cycles.

Punching Shear Failure: In reinforced concrete slabs or footings, punching shear failure can occur when the concentrated load at a column or support point exceeds the capacity of the concrete to resist shear forces.

Torsional Failure: Torsional failure occurs when a structural member fails due to torsional or twisting forces. It can affect components like shafts, beams, or columns that are subjected to twisting moments.

Creep Deformation: Creep is the slow, time-dependent deformation of materials under a constant load. Over time, it can lead to structural deflection and deformation, especially in concrete and certain metals.

Material Deficiency: Material-related failures can result from the use of substandard or defective construction materials, leading to reduced strength, durability, or stability.

Prevention and Mitigation of Structural Failures

To prevent and mitigate failures, several measures should be implemented:

1.) Stringent design and engineering standards: Adhering to robust design standards and codes ensures that structures are designed to withstand anticipated loads and environmental forces.

2.) Quality control in construction: Implementing rigorous quality control processes during construction helps detect and rectify any deficiencies or errors that may compromise structural integrity.

3.) Regular inspections and maintenance: Conducting regular inspections and proactive maintenance activities help identify potential issues early on, allowing for timely repairs and preventive measures.

4.) Advancements in technology and materials: Embracing technological advancements and innovative materials can enhance structural strength, durability, and resilience.

Structural failures pose significant risks to human life, property, and the economy. Understanding the causes, impacts, and prevention measures is crucial for ensuring the safety and integrity of our built environment. By implementing stringent design and construction standards, conducting regular inspections and maintenance, and embracing technological advancements, we can minimize the occurrence of structural failures and mitigate their consequences. It is imperative that stakeholders, including designers, engineers, contractors, and regulatory bodies, work collaboratively to prioritize structural safety and prevent future failures.

Source

What is Diaphragm Design?

What is diaphragm design and why is it important?

A diaphragm is a flat structural unit acting like a deep, narrow beam. The term ‘diaphragm’ is usually applied to roofs and floors. A shear wall, however, is just a vertical diaphragm. Shear walls provide support for the roof and floor diaphragms transmitting forces into the foundation.

A diaphragm structure results when a series of diaphragms are properly tied together to form a unit. When diaphragms and shear walls are used in the lateral design of a building, the structure is termed a box system. With good common construction practice, most sheathed elements in a building add considerable strength to the structure.

Does the structural diaphragm always work?

We wouldn’t be in business for as long as we have been if we weren’t honest with our customers. Like many things in life, there are exceptions with what functions correctly and not correctly. With a diaphragm structure, it’s important to know that some elements will not add strength to your structure.  Those elements are:

• Standing seam metal roofs
• Corrugated asphalt paper roofs
• Other low-stiffness sheathing materials

If the walls and roofs are sheathed, adequately tied together and attached firmly to the foundation, many of the requirements of a diaphragm structure are already met. This explains the excellent performance of sheathed buildings in hurricane and earthquake conditions.

Applying the principle of diaphragm structure action results in reduced post size and embedment (foundation) requirements consistent with actual building performance. A firm foundation consisting of properly installed footings to support the intended structure and its design load is essential to the structural integrity and performance of your building. Footers must be:

• Adequate size to support the intended structure and its design load
• Extend below exterior grade sufficiently to be free of frost action during winter
• Properly installed over well-compacted soil
• Consistent with the requirements of local building codes

This makes post frame construction more economical and competitive with other construction alternatives in code-enforced construction. In measurable terms, the post size (also known as columns) for a typical post frame building can be reduced by more than one nominal size if the diaphragm contribution of roof cladding is considered.

Columns are integral parts of a pole barn. They support the entire roof system and transfer all vertical loads (such as snow) directly to the footings. Columns are the backbone of your walls and assist in resisting horizontal loads most commonly occurring from winds. Keep in mind that your building’s diaphragm carries the majority of the wind loads so “oversized” columns will not necessarily make your building stronger, it is the engineered system that will ensure peace of mind.

For example, the post reduces from a 6 x 10 solid-sawn (or 3-ply, 2x10 nail-laminated) column when no diaphragm action is used, to a 6 x 6 solid-sawn (or 3-ply, 2x6 nail-laminated) column when diaphragm action is considered for a 40’ wide x 80’ long building with a 16’ eave height.

When principles of diaphragm action are not applied, the total lateral wind load must be resisted solely by the wall columns. Each side wall post then behaves like a cantilever beam, resulting in a higher post bending moment at the ground line which requires a greater embedment depth.

Diaphragm action also requires that all pieces of the structure work together, so connecting these pieces together is very important. This includes the correct size, type, and spacing of fasteners.

When comparing post frame builders, it is important that you pay attention to the fastening systems being used to attach the steel siding and roofing; how and when the system is applied. You want to evaluate the different offerings before you buy. We know that it sounds silly, but there’s a reason why this is important.

Because much of the post frame building strength comes from the diaphragm of steel on the sides and roof, the more secure the steel is affixed to the wood framing, the stronger the building. In addition, the ability of a shear wall to resist lateral loads requires a well-constructed roof diaphragm. The two work together to transfer lateral loads through the shear wall to the foundation. The effectiveness of the system is only as good as the quality and quantity of connections.

Diaphragm sheathing materials are typically a structural wood panel, such as plywood or oriented strand board (OSB), or architectural steel.

Steel is measured in two ways:

• Thickness: Steel thickness is specified in inches or gauge.
• Yield strength: The amount of force required to cause permanent deformation. Hardness or resistance to denting is a function of yield strength.

Structural wood panels have the following features:

• They are used where a traditional roof or wall appearance is desired.
• Diaphragm tables are referenced in the codes, allowing for easy design and application.
• Exterior adhesives are used in their manufacture to resist the effects of moisture during job-site construction, maintaining an attractive appearance.
• They can easily be painted or shingled.

Wood diaphragms have a large capacity to absorb impact loads, resulting in excellent performance in high wind or earthquake situations.

Post frame construction produces stronger buildings than other methods for the following reasons:

• Columns in the ground add to the building's stability and wind resistance.
• Horizontally connected posts form a tremendously strong box that adds to wind and seismic resistance.
• The direct attachment of trusses to the post frame makes it virtually impossible for the roof to detach from the building.
• The diaphragm effect created by the post-frame structures allows them to flex under stress instead of cracking, crumbling or collapsing like many other structures.

Article Source



Which Is Better Raised Foundation Or Slab Foundation?

 There are two types of foundations that you have to consider when building a home.

The first is the “raised” floor, a framework created around the exterior of the building on which it has a nailed sill or base plate, and then they build the house on top. Most older homes were constructed with crawl spaces and with elevated floors, up to the early 70s. For all but the oldest homes have large lag-bolts to hold the house firmly attached to the foundation.

Today, however, it is very heavy and costly to excavate the space inside the footings, set forms for the footings, and create the raised bottom. Builders, therefore, favor the concrete slab foundation, which is both quicker to build and easier to build. Many developers are setting down “application lines,” such as water lines and cables, into the base. Most of the time, everything is good, but if the house is exposed to insufficient drainage and “heating” happens, all the pipes in the slab may be disabled, and the only way to fix it is to jackhammer through the paver section to get to the service line. It’s not always the case, but it can be really expensive to repair when it does. Homeowners with slab foundations must be vigilant in ensuring that water drainage in and around the home is always “good,” meaning it leads away from the house.

Well-made raised stem floors, like those used for crawl spaces, tend to settle relatively uniformly over time, while slabs are prone to settling and cracking incoherently. It depends on where you live which form of base you need to decide.

When you’re in an incredibly wet spot, slabs are safer, but they will lift the block on around one foot of fill. Slab base also offers greater house stability. If you see a slanted building, then there is a major problem with the base. When you preview houses, look at the structure and the foundation. Professionals should search for any cracks or inclined areas. Call in a consultant for testing if in doubt.

Pros of a Raised Foundation

Raised foundation homes can shift even with their deeper footings, so maintaining drainage around the raised foundation is equally critical. But, you will also have better access to all utilities— water pipes, electrical lines, and heating/ventilation. The only thing you’ll find in an older home is sometimes “expansion cracks” in the drywall across the door tops and at home corners. The explanation for this is, of course, that the building is shifting ever so slightly, and drywall cracks will appear over time.

The elevated houses are evidently easier than concrete slabs to walk and stand on. Although it may be easier to clean a concrete slab in areas such as the kitchen, office, or bathroom, it is also tougher on the body. If you live in an environment prone to flooding, you will be paying less premiums for an elevated floor structure.

The elevated floors are cooler than slabbed surfaces. Concrete appears to stay cold. When the concrete slab is on the ground, it will also continue to suck up moisture into the home and become a persistent mold source. This mildew, if unchecked, can be very dangerous and expensive.

Raised floors make it much easier for the homeowners to move plumbing than with a concrete foundation. Pipes are in stone set into concrete slabs. Plumbing allows the concrete floor to be teared up and re-poured to move a kitchen sink or toilet. You’ll get quick access to all your pipes with a raised board.

Pros of a Slab

Some of a paving stone’s benefits include low maintenance. When a concrete floor is poured and completed it is practically trouble-free. If sealed, there is not a whole lot of stuff going to penetrate the lock. Dropping objects onto the concrete would damage the object even more. Don’t put your phone down on a concrete board! It’s a really easy repair if the concrete gets hurt. For a look like wood, brick or tile, you can paint or stain concrete. To protect your home from the winter months, heating elements may be built in concrete. Concrete may also be tiled, carpeted or even painted in a number of colors, once laid. A slab has options for style, for those who think this is significant.

One of the most significant factors is the environment in which you, for example, can do better in the way of safety if you live in an area vulnerable to earthquakes. That is the same explanation if you’ve lived in flood-prone areas. But if you’re in an environment that’s susceptible to molding, you may want to go for a dice.

Article Source

Vaulted Ceilings: The Pros and Cons

Vaulted ceilings aren’t just for church anymore. These highfalutin room lids can be an impressive statement that can add space and natural light and transform a plain-Jane living room into your own shrine to good taste in home design.

What is a vaulted ceiling?

Over the years, the phrase “vaulted ceiling” has grown to encompass much more than it originally did, to the point that many people think of high ceilings and vaulted ceilings interchangeably. “Historically, vaulted ceilings referred to any arched ceiling below a roof and above walls, like a dome or a barrel vault,” says Connecticut-based architect Ming Thompson, principal of Atelier Cho Thompson. “Today, though, it means any type of interior ceiling that takes advantage of the space between the roof and what would be a flat ceiling.” If you’re curious to see different way designers have put this feature to use, consider these vaulted ceiling ideas.

What types of vaulted ceiling are there?

Cathedral ceilings, the kind most homeowners think about when they hear the words “vaulted ceiling,” are just a type of vaulted ceiling. Cathedral ceilings have flat, diagonal planes rising from the tops of the walls to a central high point and (usually) following the roof structure.

Other types of vaulted ceilings common in architectural design include barrel-vaulted ceilings (which are exactly what they sound like—like you’re inside a giant barrel on its side), groin vaults (two or more barrel-vaulted ceilings crashing into each other at right angles), rib vaults (like a groin vault but meeting at ribs on top), and dome ceilings. Barrel vaults are also known as tunnel vaults or wagon vaults. (A cupola is not a vaulted ceiling. It’s a separate structure like a small dome or turret that sits on top of a roof.)

The mainstream definition’s gotten loose enough to sometimes include sloped ceilings (also known as shed ceilings) as a type of vaulted ceiling—these have one high edge and one ledge and don’t have to be tied to the building structure.

What are the advantages of having a vaulted ceiling?

If you want a room itself to be a statement piece, a vaulted ceiling will definitely fit the bill, if executed correctly. It can create a new spatial geometry that changes the scale of the room feel and adds grandeur with a capital G.

“If you have standard ceilings everywhere else, a vaulted ceiling’s a way to create this 'Wow!' moment,” San Francisco–based architect Monica Sanga says. “Walking from a uniform space to a vaulted ceiling gives you a narrative as you walk into a room.”

You also get more vertical space with vaulted ceilings, which means that you have more opportunities to let in natural light (or artificial light, like with chandeliers or other otherwise impractical light fixtures) and showcase your home’s surroundings.

“The increased wall area gives you more space for windows and therefore more light and potential views,” Rachel Bullock, cofounder and studio director of AD PRO Directory firm Laun Studio, in Los Angeles, says.

And even if your views are of the town tire fire, you can still use a vaulted ceiling to elevate the atmosphere of your home. “Vaulted ceilings provide generous space overhead,” Thompson says. “While they don’t add floor area, they do give a sense of airy grandeur, and can help cramped rooms feel more special and large. Vaulted ceilings also eliminate space that might be otherwise captured in an attic, which means you can more easily add useful skylights in the ceiling plane to provide more lighting to the space below.”

And, of course, the Gothic cathedral look can be great if your family includes a walker of the night. “It is the preferred ceiling type for vampires, but you do not need to be a vampire to have one."

What are the disadvantages of a vaulted ceiling?

Vaulted ceilings probably aren’t going to work for your average homeowner. The open space you create with a vaulted ceiling only goes up, which means you create more volume in a room but don’t increase the square footage. So it doesn’t expand your usable space except for certain functions like lighting (say chandeliers) and certain kinds of design elements, like when you want to create a place to show off your newly exposed wood beams.

So, in a world where the value of a home is often distilled down into what it can fetch on the real estate market versus what you spent on it, vaulted ceilings are not usually seen as adding to the bottom line. They could be even less desirable if putting in a vaulted ceiling involves losing attic space or part of the upstairs.

“If it’s a floor plate above your ceiling, you have to think about losing the square footage of whatever is above,” Sanga says. “The priority for most homeowners is square footage and resale value, so a vaulted ceiling is not often top of mind.”

But the calculus could be different if you’re already doing a necessary renovation. If you need to replace the roof anyway, it might be a good opportunity to rebuild the section differently—that’s really just adding value,” Sanga says.

If you’re putting a vaulted ceiling into an existing space, be prepared for a lot of extra headaches as you run into the realities of structural integrity, tricky electrical work, building codes, and more.

“Oftentimes people think, Oh, I can just take out this ceiling and expose the roof. And that’s not exactly how it works,” Sanga says. “There are a lot of things in a ceiling that are meant to be there structurally that you can’t easily take away, and there’s insulation and fire-code issues. A lot of times you need to have a regular ceiling in there. And if there’s a roof above, it can get a little bit more hairy.”

Continue reading this article here...
